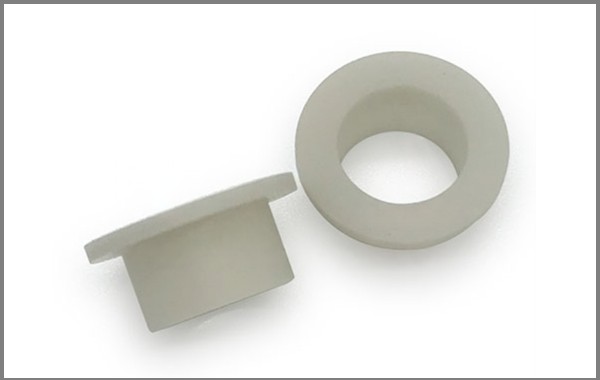

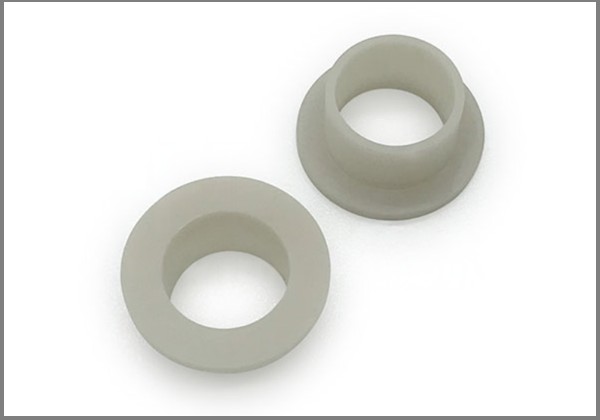

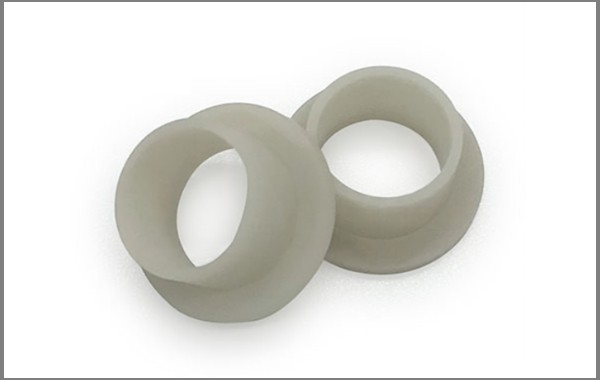

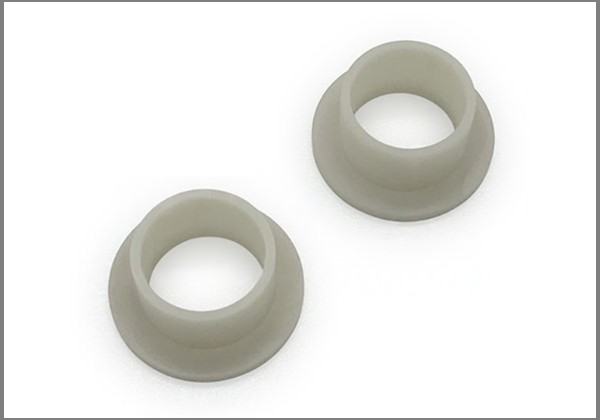

Aluminum nitride (AlN) ceramic ring sleeves
Alias: High thermal conductivity AlN ceramic T-shaped short tube

Description：

Precision ceramic products such as aluminum nitride (AlN) ceramic ring sleeves, and high thermal conductivity AlN ceramic T-shaped short tubes perform well in harsh environments such as high temperature, high pressure, and high thermal conductivity, and are widely used in electronics, optoelectronics, aerospace & aviation, and other fields. They offer excellent high temperature resistance, thermal conductivity, and chemical stability, providing reliable solutions for various industrial and technological applications.

Features:

1. High thermal conductivity
These precision ceramic products have excellent thermal conductivity, with a thermal conductivity of up to 170 W/(m·K), which is close to the thermal conductivity of some metals, and can quickly absorb and conduct heat from heat sources (such as semiconductor devices) to maintain the temperature stability of the equipment, making it suitable for heat sinks and electronic components heat dissipation and other application scenarios.

2. High temperature resistance
Aluminum nitride (AlN) ceramic ring sleeves, High thermal conductivity AlN ceramic T-shaped short tubes and other products have excellent high temperature resistance, usually can maintain good physical and chemical properties at high temperatures above 700℃, and are suitable for high temperature environments.

3. Good electrical insulation
With an electrical breakdown strength of up to 17-19 KV/mm and low dielectric losses, aluminum nitride ceramic parts provide excellent thermal management without compromising their electrical insulation, without degrading insulation properties due to heat build-up as some materials do.

4. Chemical stability
Aluminum nitride ceramic parts have excellent chemical stability, can resist chemical corrosion such as acid and alkali solutions, corrosive media, etc., and maintain long-term stable service performance.

5. Extremely high mechanical strength
Aluminum nitride ceramics have high hardness and mechanical strength, compared with alumina ceramic materials, aluminum nitride has higher bending strength, can resist mechanical stress, is not easy to deform, is wear-resistant, and is suitable for complex applications. Its flexural strength reaches 466-496MPa, ensuring the stability and durability of structural components such as ceramic ring sleeves / T-shaped short tubes under high loads.

6. Good thermal stability and Low coefficient of thermal expansion
It can be used in aerobic environments up to 1000℃, and has good thermal shock stability (ΔT400℃), and can still maintain the stability of structure and performance in environments with large temperature changes. Its coefficient of thermal expansion is 3.2-3.4×10^-6/℃, which is close to silicon, which makes it have excellent compatibility with semiconductor materials when the temperature changes, reduce the stress caused by the difference in thermal expansion, and avoid damage caused by thermal stress.

7. Precision machining
Ceramic products (such as aluminum nitride (AlN) ceramic ring sleeves, and high thermal conductivity AlN ceramic T-shaped short tubes) can be customized with precision processing to meet customers' specific size, shape, surface finish and other requirements, ensuring the accuracy and reliability of the overall equipment, such as: the diameter accuracy of the ring sleeve, the inner and outer diameter accuracy of the T-shaped short tube, etc.

Applications:

1. Electronics industry
In the electronics industry, these precision ceramic products are widely used in key components such as heat dissipation and insulation of electronic components to ensure the stable operation and long life of electronic equipment.

2. Optoelectronics field
In the field of optoelectronics, these precision ceramic products are used in the heat dissipation and protection of high-power optoelectronic devices such as lasers and optical fiber communication equipment to ensure the stability and reliability of equipment.

3. Aerospace & Aviation
In the field of aerospace & aviation, products such as aluminum nitride (AlN) ceramic ring sleeves, and high thermal conductivity AlN ceramic T-shaped short tubes are used in key components in high-temperature and high-pressure environments such as aerospace devices and aero engines to ensure the stable operation and safety of aerospace devices.

4. New energy field
In the field of new energy, these precision ceramic products are used in high-temperature and high-thermal conductivity environments such as battery radiators and solar cell modules to dissipate and protect heat, improving the efficiency and longevity of energy equipment.

Product customization:

1. Surface finish: The surface finish of aluminum nitride ceramics can reach Ra≤0.1μm after polishing.
2. The dimensional accuracy of the product in all directions is guaranteed by laser scribing, and the minimum value ± 0.10mm.
3. Special specification products can be customized according to customer requirements.

In the field of precision ceramic processing and customization, Fudong Machinery is committed to the production of various high-performance ceramic parts, including zirconia ceramics, silicon nitride, aluminum nitride and other products. These ceramic parts have excellent thermal stability, electrical insulation, high temperature stability and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military industry, and automotive.
With its excellent performance and reliability, our products provide customers with key support and guarantees, helping them improve production efficiency and optimize product performance.

Non-standard parts customization, due to different requirements such as product size, material details, processing accuracy, etc., resulting in different costs such as material costs, processing costs, packaging logistics, etc. Please be sure to contact customer service when ordering, provide as much part information (drawings or samples, use environment, etc.) and your requirements (quantity, delivery date, etc.) as much as possible, and we will submit you a specific plan that meets your parts requirements, as well as a preferential quotation. Thank you very much for your interest!
