Zirconia ceramic insulators
Alias: Air purifier ceramic wheel
Description：

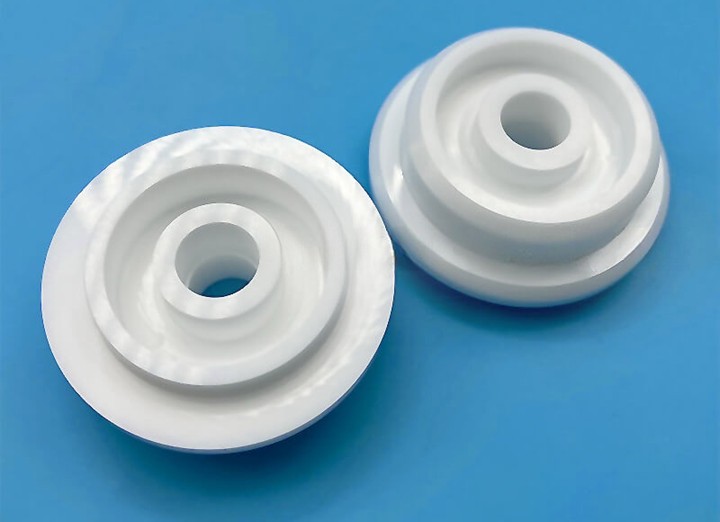

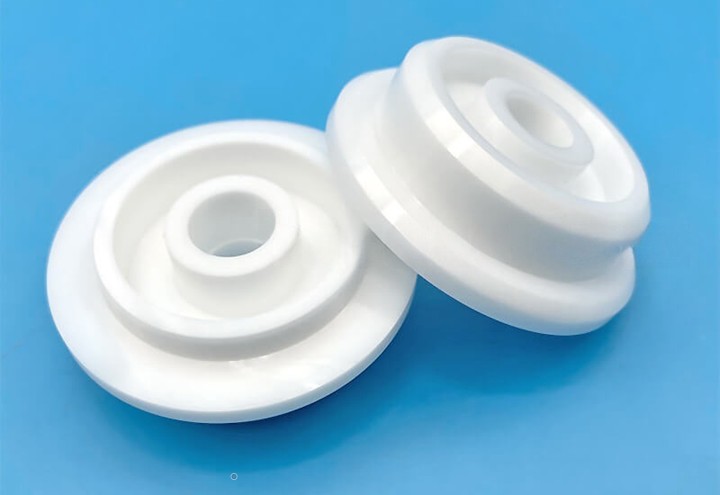

Customized zirconia (ZrO2) ceramic insulators, also known as air purifier ceramic wheels. These ceramic insulators have a smooth surface and precise shape design to ensure good electrical insulation and stability during use. The high hardness and strength of zirconia ceramics allow these insulators to maintain their shape and properties even under high pressure and high temperature conditions, thus ensuring the stable operation and long life of the equipment.
Features:
Zirconia ceramic insulators (alias: air purifier ceramic wheels) are designed for high-performance applications in electrical equipment and air purification systems.
— Superior electrical insulating properties
The strong electrical insulation capability ensures safe operation in high-voltage environments and prevents current leakage or electrical failure.
— High temperature resistance and mechanical strength
It has excellent high temperature resistance, and can work stably in the environment with a temperature difference of up to ΔT250 °C, while the flexural strength is up to 800 MPa and the compressive strength is up to 2000 MPa, ensuring that the shape and performance are maintained under high pressure and high temperature conditions.
— Smooth surface and precise shape design
Provides good electrical insulation and stability, suitable for precise electrical connection and fixing.
— Excellent corrosion resistance
Maintain material integrity and prevent corrosion and degradation in environments with a wide range of chemical handling and humidity variations.
Applications:
Such as transformers, switches, and other high-voltage equipment to ensure electrical isolation and safety.
In air purifiers that require high electrical insulation, it is used as an insulator for conductive parts.
- High-temperature industrial applications
Suitable for environments that require high temperature resistance and electrical insulation, such as furnaces and heating equipment.
It is used in precision machinery for fixation and electrical insulation to protect sensitive components from electrical interference.
Zirconia ceramic insulators play a key role in a variety of electrical equipment and industrial applications through their superior electrical insulating properties, high temperature resistance, and mechanical strength. They not only ensure the safe operation of the equipment, but also improve the reliability and stability of the overall system, especially in the application of high voltage and high temperature environment, showing their irreplaceable value.
In the field of precision ceramic processing and customization, Fudong Machinery is committed to the production of various high-performance ceramic parts, including zirconia ceramics, silicon nitride, aluminum nitride and other products. These ceramic parts have excellent thermal stability, electrical insulation, high temperature stability and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military industry, and automotive.
With its excellent performance and reliability, our products provide customers with key support and guarantees, helping them to improve production efficiency and optimize product performance.
