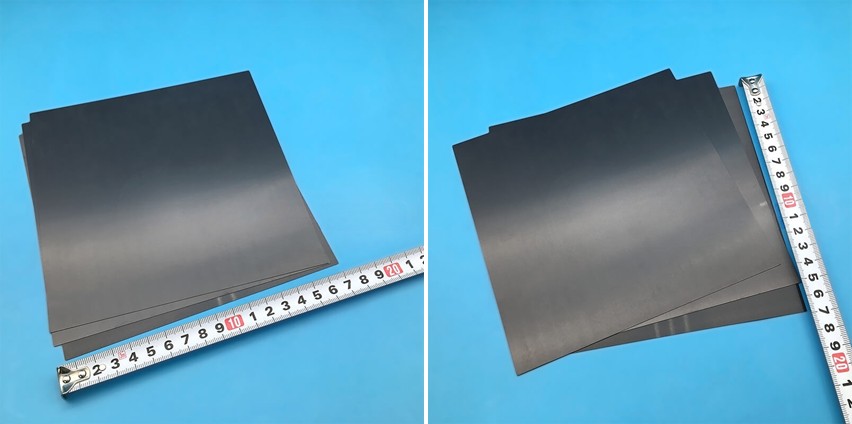

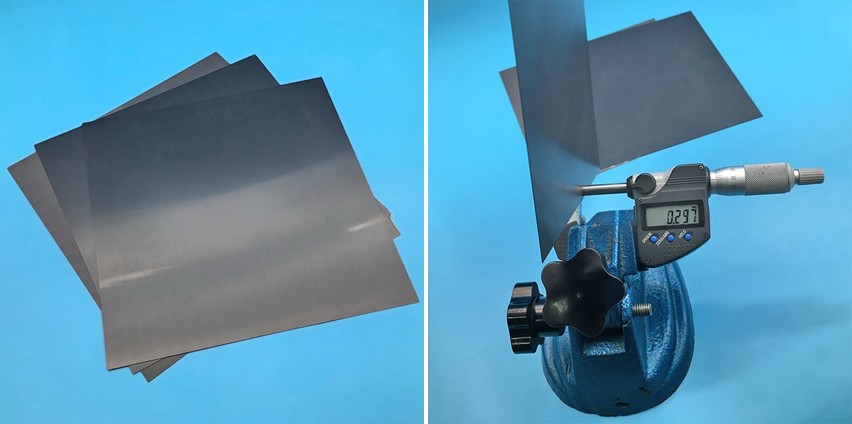

Ultra-thin silicon nitride ceramic plate
Alias: Ultra-thin ceramic divider sheets / silicon nitride wafer sheets
Description：
These ultra-thin silicon nitride ceramic plates are suitable for use in high-temperature environments such as heat exchangers, combustion chamber linings, or other applications where lightweight and high-strength materials are required. Additionally, silicon nitride's chemical stability and low coefficient of thermal expansion make it highly useful in semiconductor manufacturing, especially when dealing with high-temperature processes. Their ultra-slim design not only reduces weight but also allows for efficient use in compact spaces, providing superior mechanical and thermal properties.
Features:
Ultra-thin silicon nitride ceramic plates, also known as ultra-thin ceramic divider sheets, or high-temperature and corrosion-resistant insulating silicon nitride wafer sheets, are advanced material solutions designed for high-temperature and demanding environments. These sheets combine the excellent physical and chemical properties of silicon nitride, providing an ideal material choice for a wide range of industrial applications.
1. Ultra-thin design
This design not only reduces the weight of the material but also allows for effective use in compact spaces, enhancing flexibility and overall efficiency in equipment design.
2. High mechanical strength and hardness
The high hardness of silicon nitride (Hv0.5 to 1500) and elastic modulus (290 GPA) ensure that structural integrity and stability are maintained under extreme conditions.
3. Excellent thermal performance
The low coefficient of thermal expansion (3.1×10-6/℃) allows it to remain stable in environments with drastic temperature changes, making it suitable for use as a lining for heat exchangers and industrial high-temperature furnaces.
4. Chemical stability and corrosion resistance
Silicon nitride is extremely resistant to a wide range of chemicals and is suitable for use in chemical processing environments.
Applications:
1. Heat exchanger
Utilizing its high thermal conductivity and thermal stability, it is used as a divider in heat exchangers to improve energy efficiency and thermal management performance.
2. Combustion chamber lining
Used in high-temperature environments such as combustion chambers, it provides heat resistance and protection properties, extending the life of the equipment.
3. Semiconductor manufacturing
In semiconductor manufacturing, especially when dealing with high-temperature processes, it is used to protect and isolate sensitive components, preventing thermal damage and chemical corrosion.
Product customization:
In the field of precision ceramic processing and customization, Fudong Machinery is committed to the production of various high-performance ceramic parts, including zirconia ceramics, silicon nitride, aluminum nitride and other products. These ceramic parts have excellent thermal stability, electrical insulation, high temperature stability and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military industry, and automotive.
With its excellent performance and reliability, our products provide customers with key support and guarantees, helping them improve production efficiency and optimize product performance.
Non-standard parts customization, due to different requirements such as product size, material details, processing accuracy, etc., resulting in different costs such as material costs, processing costs, packaging logistics, etc. Please be sure to contact customer service when ordering, provide as much part information (drawings or samples, use environment, etc.) and your requirements (quantity, delivery date, etc.) as much as possible, and we will submit you a specific plan that meets your parts requirements, as well as a preferential quotation.
