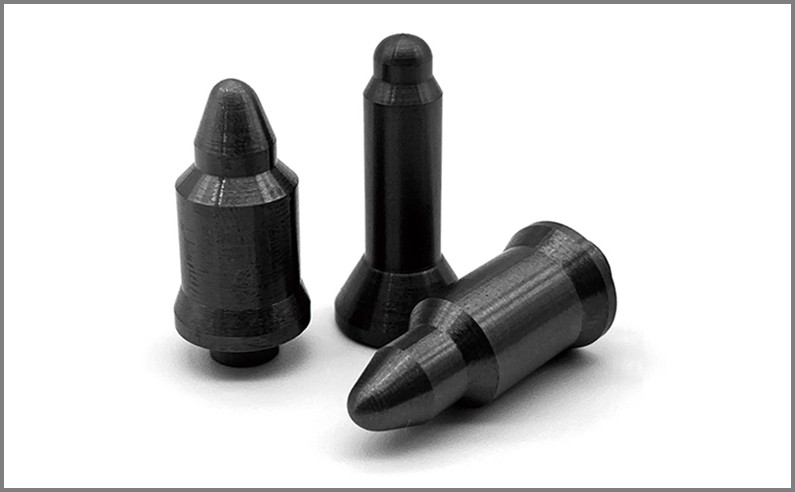

Black silicon nitride ceramic locating pins
Alias: spot-welding machine ceramic locating pins / welding-use ceramic locating spare parts
Description：
Ceramic locating pins made of black silicon nitride (Si3N4) material are often used as locating fittings in the welding process. Silicon nitride is a high-performance ceramic material with excellent mechanical properties, high temperature resistance, and excellent thermal shock stability and wear resistance. This makes it ideal for use in extreme environments such as high-temperature welding operations.
The design of the locating pin, which includes a cylindrical body and a conical shape or spherical top, this shape helps ensure precise locating and support of the weld material in the spot-welding machine, and it is easily installed into the corresponding mechanical device.
Material Properties
Silicon nitride offers extremely high mechanical strength (modulus of elasticity of 290 GPA) and excellent high temperature resistance (up to 1200℃), making it suitable for demanding industrial environments. Its Vickers hardness is up to 1500 HV and its compressive strength is 2500 MPa, ensuring stability and durability under high loads and temperatures.
Product Features:
Silicon nitride locating pin customization, also known as spot welding machine ceramic locating pin, is a key component designed for high-performance spot-welding machines, with the following notable design features:
1. Structural design
The locating pin has a cylindrical body and a conical or spherical head, this special shape design helps to precisely position and support the welding material in spot welders, improves the positioning accuracy of components during assembly, especially in applications where quick and easy installation is required, such as automated production lines. Its conical or spherical head provides a better contact point, ensuring that the welded material is stable during machining.
2. Chemical stability and low surface friction
The black finish, which not only enhances chemical stability, but also reduces surface friction, which is essential for maintaining weld quality and reducing light reflections.
3. Excellent high temperature resistance
The locating pin is made of silicon nitride material through a high-temperature sintering process, which can work stably at temperatures up to 1200°C, which is very suitable for high-temperature welding operations.
4. Excellent thermal shock stability and wear resistance
The high thermal shock stability (△T℃ of 500) and excellent wear resistance enable the locating pin to maintain good performance under repeated thermal cycling and mechanical stress.
Applications:
Silicon nitride locating pins have a wide range of uses in a variety of industrial applications, especially where high precision and durability are required:
1. Spot-welding machine application
In spot welding machines, these locating pins are used to precisely position metal materials, ensuring accuracy and repeatability in the welding process. Its resistance to high temperatures and wear makes it ideal for continuous high-intensity work.
2. High-temperature treatment environment
In automatic welding machinery, it is used as a locating element to ensure welding accuracy and quality.
Due to the high thermal stability and mechanical strength of silicon nitride, locating pins are also suitable for other high-temperature processing environments, such as heat treatment and in-furnace operations.
3. Precision manufacturing process & High-performance mechanical system
Used in the production of mechanical or electronic devices that require precise assembly, especially in environments affected by heat loads.
They are used in complex mechanical systems that require corrosion resistance and high-temperature stability, such as the aerospace and automotive industries.
4. Chemical processing
The chemical stability of silicon nitride allows locating pins to be used in chemical processing equipment, especially when dealing with more aggressive chemicals.
Silicon nitride locating pins offer reliable performance in high-temperature, high-stress industrial applications through their superior design and superior material properties. The meticulous design of its structure, its high-temperature resistance and mechanical stability together ensure long-term durability and high performance in extreme working environments. These features make silicon nitride locating pins the preferred component for high-performance spot welding and other precision manufacturing applications, demonstrating the high adaptability and value of modern materials science in practical applications.
Product customization:
In the field of precision ceramic processing and customization, Fudong Machinery is committed to the production of various high-performance ceramic parts, including zirconia ceramics, silicon nitride, aluminum nitride and other products. These ceramic parts have excellent thermal stability, electrical insulation, high temperature stability and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military industry, and automotive.
With its excellent performance and reliability, our products provide customers with key support and guarantees, helping them improve production efficiency and optimize product performance.
Non-standard parts customization, due to different requirements such as product size, material details, processing accuracy, etc., resulting in different costs such as material costs, processing costs, packaging logistics, etc. Please be sure to contact customer service when ordering, provide as much part information (drawings or samples, use environment, etc.) and your requirements (quantity, delivery date, etc.) as much as possible, and we will submit you a specific plan that meets your parts requirements, as well as a preferential quotation.
